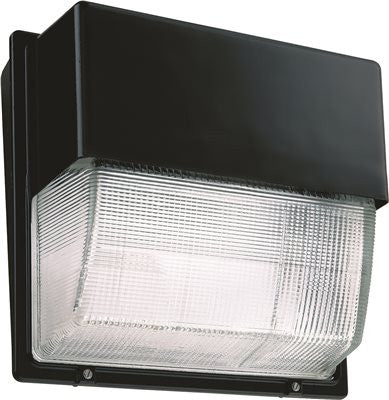

Die-cast Metal Halide Wall Pack With Lamp

| UL Listed for wet locations | IP65 rated (250W and below) or IP54 rated (400W) | For outdoor storage areas, warehouse and factory perimeters and loading docks. Rugged, die-cast aluminum housing. Corrosion-resistant captive external hardware includes slotted hex-head fasteners. Standard finish is electrostatically-applied dark bronze (DDB) corrosion-resistant polyester powder. Other architectural colors available. Reflector is specular anodized aluminum. Refractor is prismatic borosilicate glass which is sealed and gasketed to inhibit entrance of outside contaminants. Nighttime Friendly™ - Order with a full shield (FS) option, cast aluminum and glass lens construction, 400W max. Electrical components are mounted in hinged front cover that includes primary and secondary electrical disconnect. High reactance, high power factor ballast for 35W and 70 - 150W. Constant wattage autotransformer for 175 - 400W. Metal halide 150W and below are standard with pulse-start technology; super CWA pulse-start ballast required for 200W, 320W and 350W (SCWA option). Ballast is copper-wound and 100% factory-tested. Porcelain, horizontally oriented, single-ended bayonet base socket for 35W low pressure sodium; medium base socket for 70 - 150W; mogul base socket for 175W and above with copper alloy, nickel-plated screw shell and center contact. UL listed 1500W, 600V. Back housing is separated from front housing, eliminating ballast weight and promoting easy handling. Top 3/4" threaded wiring access. Back access through removable 3/4" knockout. Feed-thru wiring can be achieved by using a condulet tee. Not recommended in application where a sprayed stream of water can come in direct contact with glass lens. Mount on any flat, non-combustible vertical surface.
