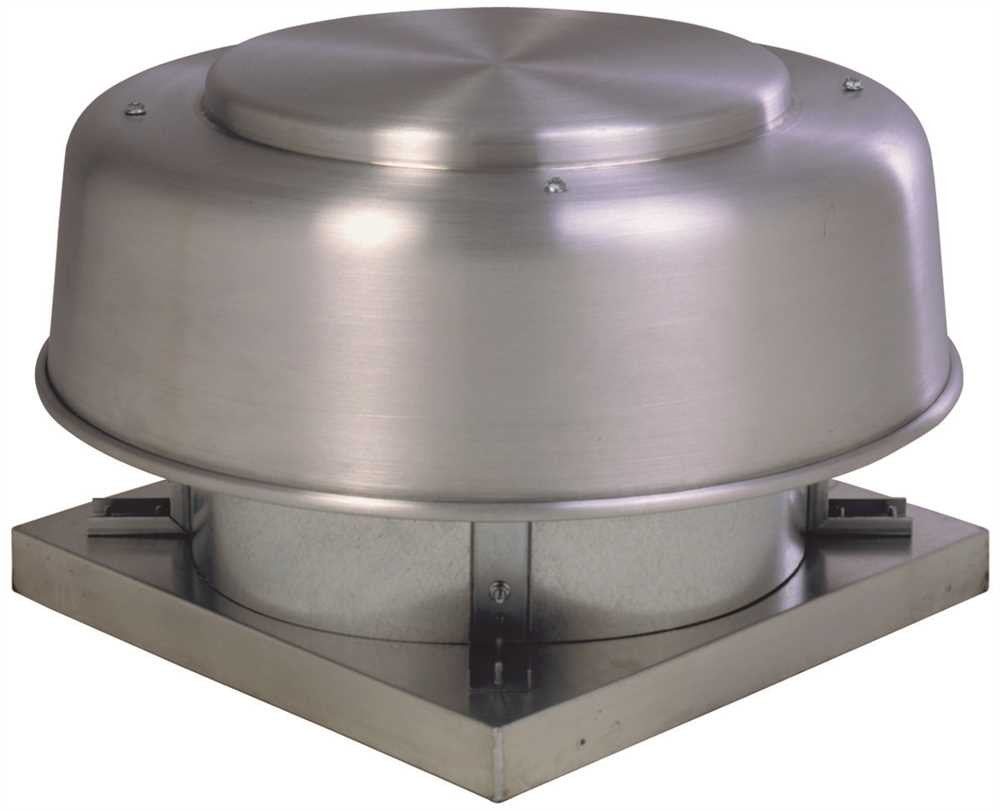

Fantech 10" Direct Drive Axial Supply Roof, 1-30 Hp, 115v
| 10”, 12”, 14” and 16” models are wall mountable | Durable spun aluminum hood construction and galvanized venturi, inlet and supports | Stamped aluminum axial fan blades with galvanized hub | Externally cooled motor compartment | Motors are 115V, 60 Hz, ball bearing motors with Class B insulation | Maximum inlet temperature is 140oF | Built-in bird screen to protect discharge and ensure safe, obstruction-free operation | Motor and propeller are easily detachable without removing ventilator from curb | Junction box mounted in motor compartment | Windband rolled bead for added strength and easy maneuverability | Welded curb cap corners eliminate water entry into ducts or building | All units require single phase power and are fully speed-controllable (5ADE18GB, 5ADE20GB and 5ADE24FB are not speed-controllable) | All ventilators are UL Standard 705 listed | Ventilators are CSA listed according to Standard C222 No 113-M1984 (Fans & Ventilators) | Available Accessories include: Fixed Ventilated mounting curbs, Speed Controllers, Disconnect switches, and Backdraft Dampers For more information, see Power Roof Ventilator Accessories | Use Speed Control #5ACC03SC | Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures.
