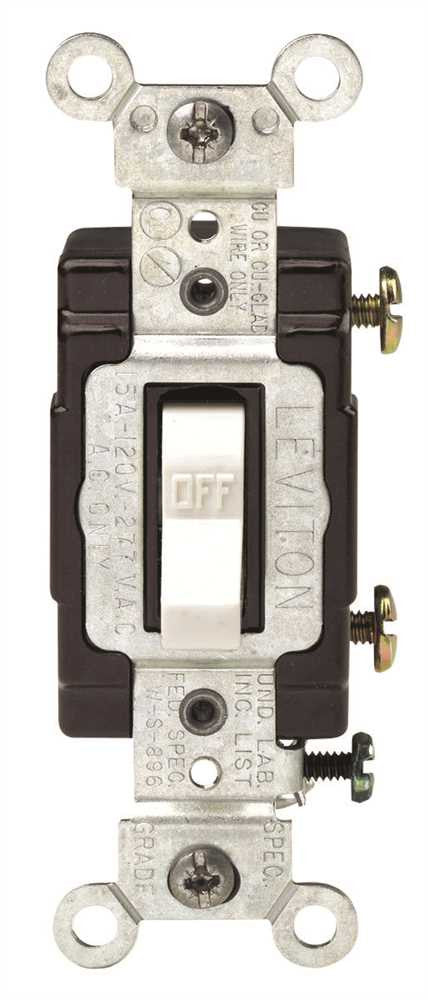

Leviton® 1-pole Commercial Grade Ac Quiet Toggle Switch, White, 120 - 277 Volts, 15 Amps

Leviton® 1-pole Commercial Grade Ac Quiet Toggle Switch, White, 120 - 277 Volts, 15 Amps

$3.08

AC Horsepower Ratings | HP Rating: 1/2HP-120V 2HP-240V^^Electrical Specifications | Amperage: 15 Amp | Voltage: 120/277 VAC | Max. Amperage: 12 Amp | Dielectric Voltage: Withstands 1500V for 1 minute | Temperature Rise: Maximum 30°C rise^^Environmental Specifications | Flammability: Rated V-2 per UL94 | Operating Temperature: -40°C to 65°C^^Material Specifications | Body Material: Thermoplastic | Base Material: PBT | Strap Material: Steel | Actuator Material: Polycarbonate | Toggle: Polycarbonate | Cover Material: Nylon | Contacts: Silver-Cadmium .031 Thick | Terminal Screws: Steel 8-32 | Color: White | Wallplate Not included^^Mechanical Specifications | Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral | Terminal Accom.: 14-12 AWG | Termination: Side | Product ID: Stamped on Strap | Torque Range: 12-14 inch pounds^^Standards and Certifications | NEMA: WD-1 & WD-6 | ANSI: C-73 | UL Fed Spec WS896E: File #E7458 | UL Standard: UL 20 | CSA C22.2 No. 111: File #152105 | NOM: 057 | Warranty: 10-Year Limited
