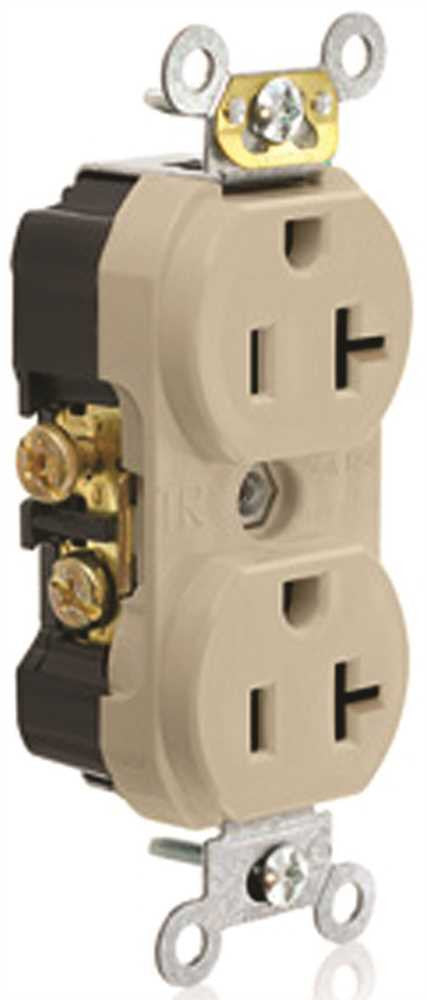

Leviton® 2-pole Commercial Grade Tamper-resistant Duplex Receptacle, Ivory, Nema 5-20r, 125 Volts, 20 Amps

Leviton® 2-pole Commercial Grade Tamper-resistant Duplex Receptacle, Ivory, Nema 5-20r, 125 Volts, 20 Amps

$4.58

AC Horsepower Ratings | Horsepower Rating: 1 HP^^Electrical Specifications | Amperage: 20 Amp | Voltage: 125 Volt | Grounding: Self Grounding | Pole: 2 | Wire: 3 | Dielectric Voltage: Withstands 2000V per UL498 | Current Limiting: Full Rated Current | Temperature Rise: Max 30°C after 100 cycles OL at 150 percent rated current^^Environmental Specifications | Flammability: Rated V-2 per UL94 | Operating Temperature: -40°C to 60°C^^Material Specifications | Face Material: Thermoplastic | Body Material: Thermoplastic | Line Contacts: Brass .031 Thick | Terminal Screws: Plated Steel | Grounding Screw: Plated Steel | Strap Material: Zinc-Plated Steel | Ground Clips: Brass | Shutter Mechanism: Delrin® Acetal | Color: Ivory | Wallplate Not Included^^Mechanical Specifications | Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral | Terminal Accom.: 10-14 AWG | Product ID: Ratings are permanently marked on device | Termination: Side | Wire Type: Solid or Stranded Building Wire^^Standards and Certifications | NEMA: WD-1 & WD-6 | ANSI: C-73 | NOM: 057 | cULus: File E13399 | Warranty: 10-Year Limited
