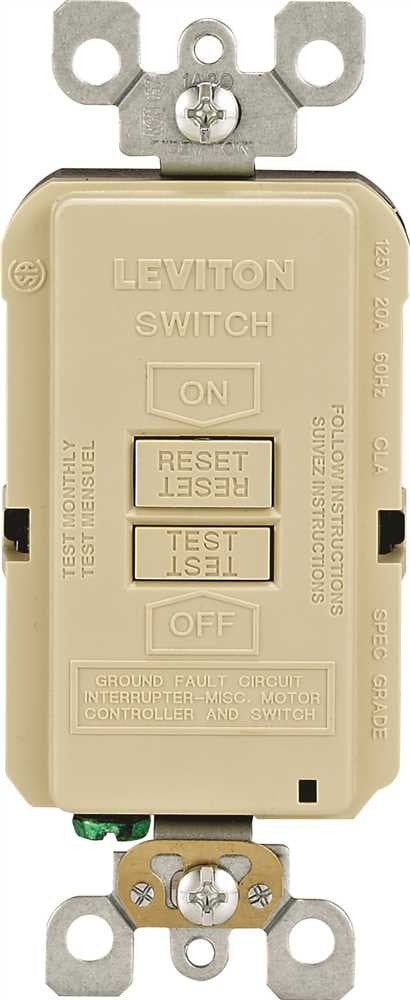

Leviton® Smartlockpro® 2-pole Blank Face Duplex Gfci Receptacle With Led, Ivory, Nema 5-20r, 125 Volts, 20 Amps

Leviton® Smartlockpro® 2-pole Blank Face Duplex Gfci Receptacle With Led, Ivory, Nema 5-20r, 125 Volts, 20 Amps

$32.50

AC Horsepower Ratings | At Rated Voltage: 1 HP^^Electrical Specifications | Feature: Self-Test | Grounding: Self Grounding | Feed-Through Current: 20 Amp | Voltage: 125 Volt | Pole: 2 | Wire: 3 | Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 | Short Circuit Current Rating: 10KA | Temperature Rise: Max 30°C after 100 cycles OL at 150 percent rated current | Trip Level: Class A, 5mA plus or minus 1mA^^Environmental Specifications | Flammability: Rated V-2 per UL94 | Operating Temperature: -35°C to +66°C^^Material Specifications | Face Material: Thermoplastic | Body Material: Polycarbonate | Strap Material: Galvanized Steel | Line Contacts: Brass Double-Wipe .031 Thick | Terminal Screws: Plated Steel | Grounding Screw: Plated Steel | Yoke: Zinc-Plated Steel | Clamps: Brass | Color: Ivory | Wallplate Not Included^^Mechanical Specifications | Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral | Terminal Accom.: 14-10 AWG | Termination: Back & Side^^Standards and Certifications | NEMA: WD-6 | ANSI: C-73 | CSA C22.2 No. 42: Yes | NOM: Yes | UL 943: File E48380 | CSA-C22.2 No. 144.1-06: File LR-57811 | Fed Spec WC-596: Yes | Warranty: 2-Year Limited
