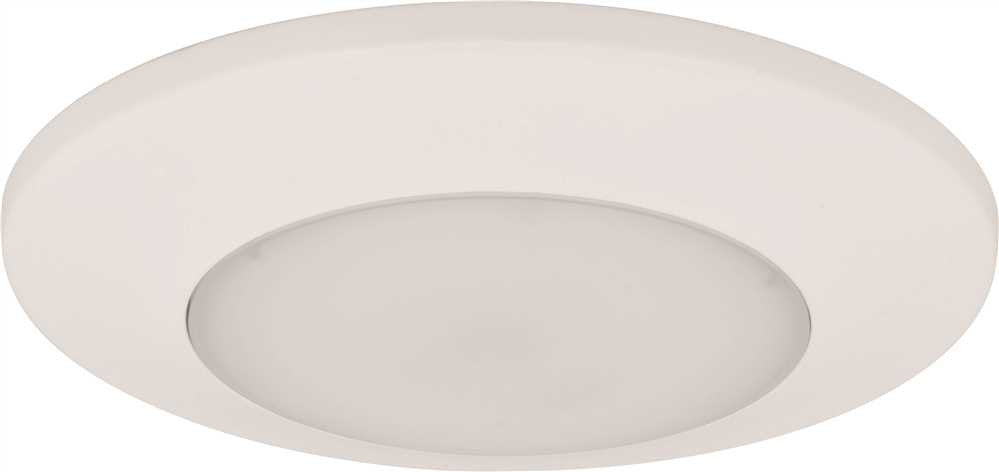

Prescolite® Led Downlight Fixture, High Efficacy, 6 In., 12 Watts, 3000k, 1000 Lumen, Dimming, White

LiteBox LED modules are designed for use in new construction as well as retrofit applications with existing Prescolite or competitive 6" housings using the screw base adapter included. Lumen output and distribution comparable to a 75W PAR while consuming only 12 watts. ENERGY STAR® qualified. Can be used to comply with California Title 24 IECC watts per square foot requirements. Suitable for use with continuous room side ambient temperature up to 25°C. Flicker-free dimming to 15% with most standard dimmers.^^LIGHT ENGINE:^High efficacy LED light engine, 3000K and 3500K, 80+ CRI, integrated with durable aluminum heat sink for excellent thermal management. System designed for optimal life and lumen maintenance (60,000 hours at 70% lumen maintenance per TM-21).^^LENS/REFLECTOR |All LiteBox LED modules are provided standard with a diffuse optical grade acrylic lens for uniform illumination and superior glare control. Reflector powder coat finish creates aesthetic ceiling appearance and visually comfortable 55° cutoff.^^LED DRIVER:^Integral high efficiency LED driver 120V, >0.9 power factor, dimmable to 15% with standard incandescent or electronic low voltage dimmers. Output over-voltage, over-current, and short circuit protection. Life expectancy of 60,000 hours minimum at recommended ambient temperatures.^^INSTALLATION:^For New Construction: Use with Prescolite DBX QuickLink LED housings. QuickLink connector mates directly to housing connector without a screw base adapter for California Title 24 compliance.^For Retrofit: Use in Prescolite or other compatible 6" recessed housings using supplied screw base adapter.^Easy installation with (3) stainless steel spring clips (pre-installed).^^CERTIFICATIONS:^UL/cUL Classified for use in Prescolite or other 6" recessed housings including Halo, Juno, and Lithonia. Suitable for wet locations. ENERGY STAR qualified. Meets California Title 24 with DBXQL^^WARRANTY:^5 year warranty
