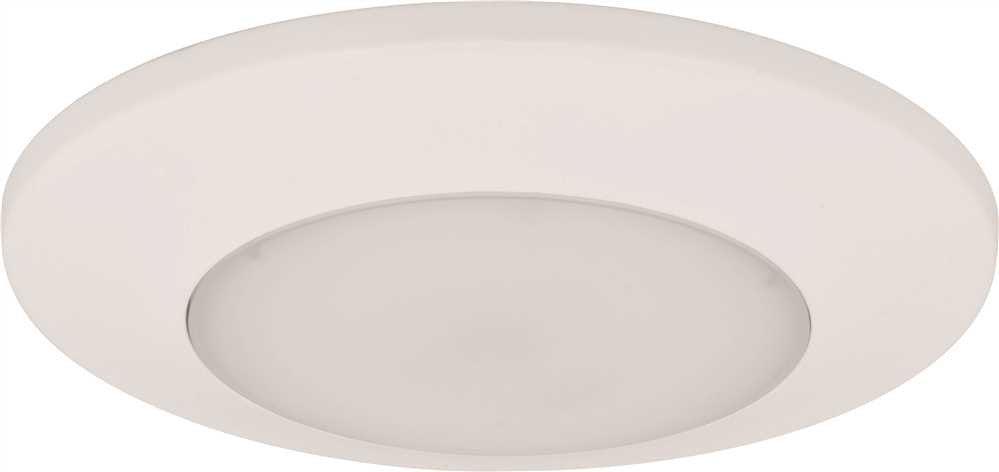

Prescolite® Led Downlight Fixture, High Efficacy, 6 In., 13 Watts, 3000k, 825 Lumen, Dimming, White
LiteBox LED modules are designed for use in new construction as well as retrofit applications with existing Prescolite or competitive 6" housings using the screw base adapter included. Lumen output and distribution comparable to a 65W BR30 while consuming only 13 watts. ENERGY STAR® qualified. Can be used to comply with California Title 24 Commercial and IECC watts per square foot requirements. Suitable for use with continuous room side ambient temperature up to 25°C. Continuous dimming to 15% with most standard dimmers.^^LIGHT ENGINE:^High efficacy LED light engine, 3000K, 80+ CRI, integrated with durable aluminum heat sink for excellent thermal management. 120V, 50/60Hz, powered directly to AC without the need for a driver. >0.9 power factor, dimmable to 15% with standard incandescent or electronic low voltage dimmers. Cycles at 120Hz output. Output overvoltage, over-current, and short circuit protection. System designed for optimal life and lumen maintenance (42,000 hours at 70% lumen maintenance per TM-21).^^LENS /REFLECTOR |All LiteBox LED modules are provided standard with a diffuse impact resistant Polycarbonate lens for uniform illumination and superior glare control. Reflector powder coat finish creates aesthetic ceiling appearance and visually comfortable 55° cutoff.^^INSTALLATION:^For New Construction: Use with Prescolite DBX QuickLink LED housings. QuickLink connector mates directly to housing connector without a screw base adapter for compliance to California Title 24 non-screw base socket requirement.^For Retrofit: Use in Prescolite or other compatible 6" recessed housings using supplied screw base adapter.^Easy installation with (3) stainless steel spring clips (pre-installed).^^CERTIFICATIONS:^cCSAus Classified for use in Prescolite or other 6" recessed housings including Halo, Juno, and Lithonia. Suitable for wet locations. ENERGY STAR qualified. Can be used to meet California Title 24 commercial with DBXQL.^^WARRANTY:^5 year warranty
